Electroplated Diamond Tool Grinding Head

Products Details

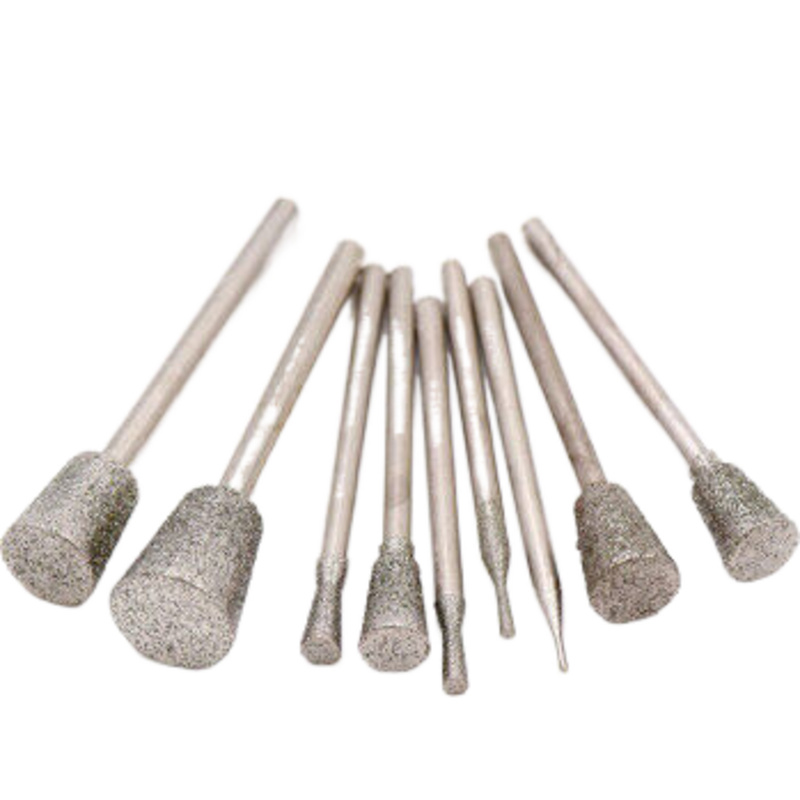

1. Grinding head

Diamond grinding head diameter is generally between 3mm-150mm, commonly used specifications are 3mm, 6mm, 8mm, 10mm, 12mm, etc. The shape of grinding head is spherical, cylindrical, conical, flat and so on. The particle size is generally between 60#-3000#, with different sizes suitable for different machining and grinding scenarios. Electroplated Diamond Tool Grinding Head01

2. Production of raw materials

Select imported high sharpness, high strength, high wear resistance diamond as abrasive.

3. Process

The abrasive particles of a superhard material (artificial diamond) are adhered to the matrix with a binder.

4. Product features

Long life, high grinding efficiency, using plastic as the matrix, can effectively reduce the transportation cost, cost performance can replace foreign imports of similar products.

5. Different from similar products on the market

1. Exemplary effectiveness in grinding and extended lifespan; 2. Precise machining attributes and minimal roughness on the item's surface; 3. Ideal for handling rigid and fragile substances; 4. Reduced dust particles, minimal environmental detriments; 5. Plastic base can be acquired to cut down on conveyance expenses.

6. Scope of application

Primarily employed in the specialized processing of tough and delicate materials like emerald, gemstone, solid crystal, synthetic crystal, porcelain, the abrasive and smoothing actions progress from coarse-grained to fine-grained grinding tool. 1. It serves the purpose of polishing valuable gems, emerald, and other precious adornments, ensuring no alterations in the existing state of the treasure jade's exterior; 2. It finds application in the grinding and polishing procedures for various kinds of Iols, glass handicrafts, and other surfaces; 3. It proves useful for the surface grinding operations involving ceramic crafts, metallic pendants, wooden items, and other petite handicrafts; 4. It can facilitate the grinding and polishing of glass lenses; 5. It can be employed for the production of bracelets; 6. It caters to the processing of metallic materials.
