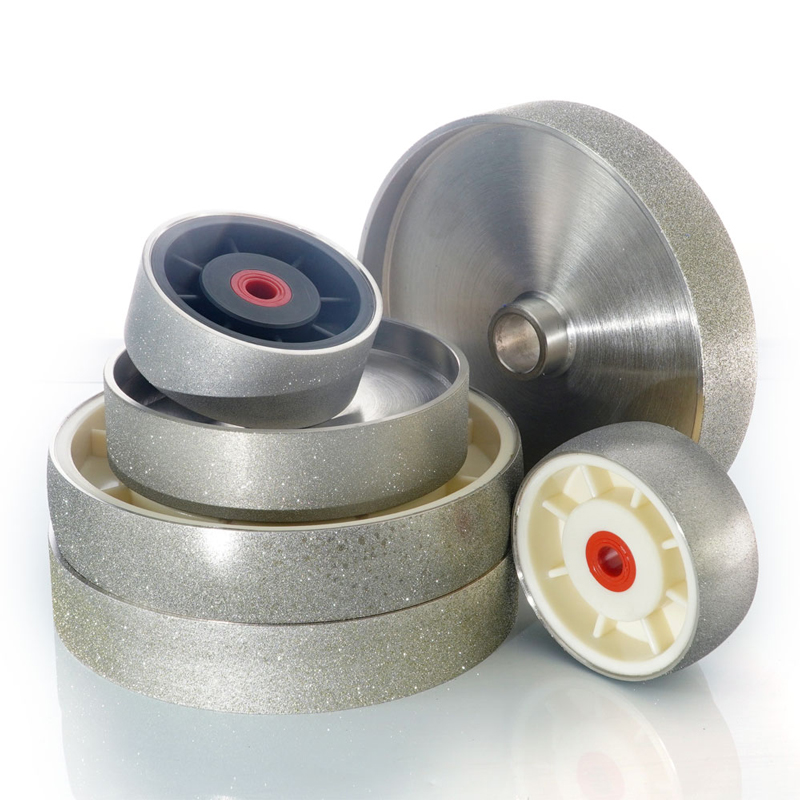

1. Grinding Wheel
Product parameters| (OD)(mm) | Center hole(mm) | Thickness(mm) | Particle size (mesh) |
| 100 | 25.4 | 25/32/38 | 60#-3000# |
| 150 | 25.4 | 25/32/38/50 | |
| 200 | 25.4 | 38/50 |
The factory will pair with a crimson shaft sleeve for the purpose of matching, utilizing sizes commonly employed in the industry. The reducer sleeve can adequately satisfy the requirements, with apertures measuring at 25.4mm, 25.2mm, 19mm, and 15.8mm. These sizes can be customized to suit the installation shaft diameters of various equipment commonly used by different customers. The shaft sleeves are made from special materials to ensure that they do not deform under the high-speed rotation and temperature increase of the grinding wheel.
2. Production of raw materials
Select imported high sharpness, high strength, high wear resistance diamond as abrasive.3. Process
The abrasive particles of a superhard material (artificial diamond) are adhered to the matrix with a binder.4. Product features
Long life, high grinding efficiency, using plastic as the matrix, can effectively reduce the transportation cost, cost performance can replace foreign imports of similar products.5. Different from similar products on the market
1. High grinding efficiency and long service life; 2. High machining accuracy and small workpiece surface roughness; 3. Suitable for processing hard and brittle materials; 4. Less dust, less pollution to the environment 5. Plastic matrix can be purchased to reduce transportation costs.6. Scope of application
Primarily employed in the shape processing of solid and delicate materials such as gemstone, crystal, glass, artificial crystal, pottery, grinding and polishing from rough to fine grinding wheel. 1. It may be used for grinding valuable gems, jade, and other precious adornments, grinding will not alter the current condition of the surface of the treasure jade. 2. It can be utilized for grinding and polishing various Iols, glass artworks, and other surfaces. 3. Capable of performing surface grinding processing for ceramic artworks, metallic pendants, wooden products, and other minor crafts. 4. Applicable for glass lens grinding and polishing. 5. Suitable for processing bracelets. 6. Ideal for processing metallic materials.
