Products Details
Product Introduction
The row saw used for marble cutting, also known as a strip saw or a pull saw, is a combination saw that uses linear reciprocating motion to cut marble. A single row saw usually contains 90-110 saw blades, with 25 diamonds embedded on the single saw blade. The specifications of the diamond blade on the blade row saw are as follows: | Category | Serrated blade size (mm) |
| Length | thickness | height |
| Combination saw (A) | 24 | 5 | 10 |
| Combination saw (B) | 20 | 4.7/5.3 | 10 |
| Single saw | 24 | 5.5 | 12 |
Note: Production can be carried out according to user requirements. Production raw materials
Powder with unique process formula, A-grade diamond, etc. Process

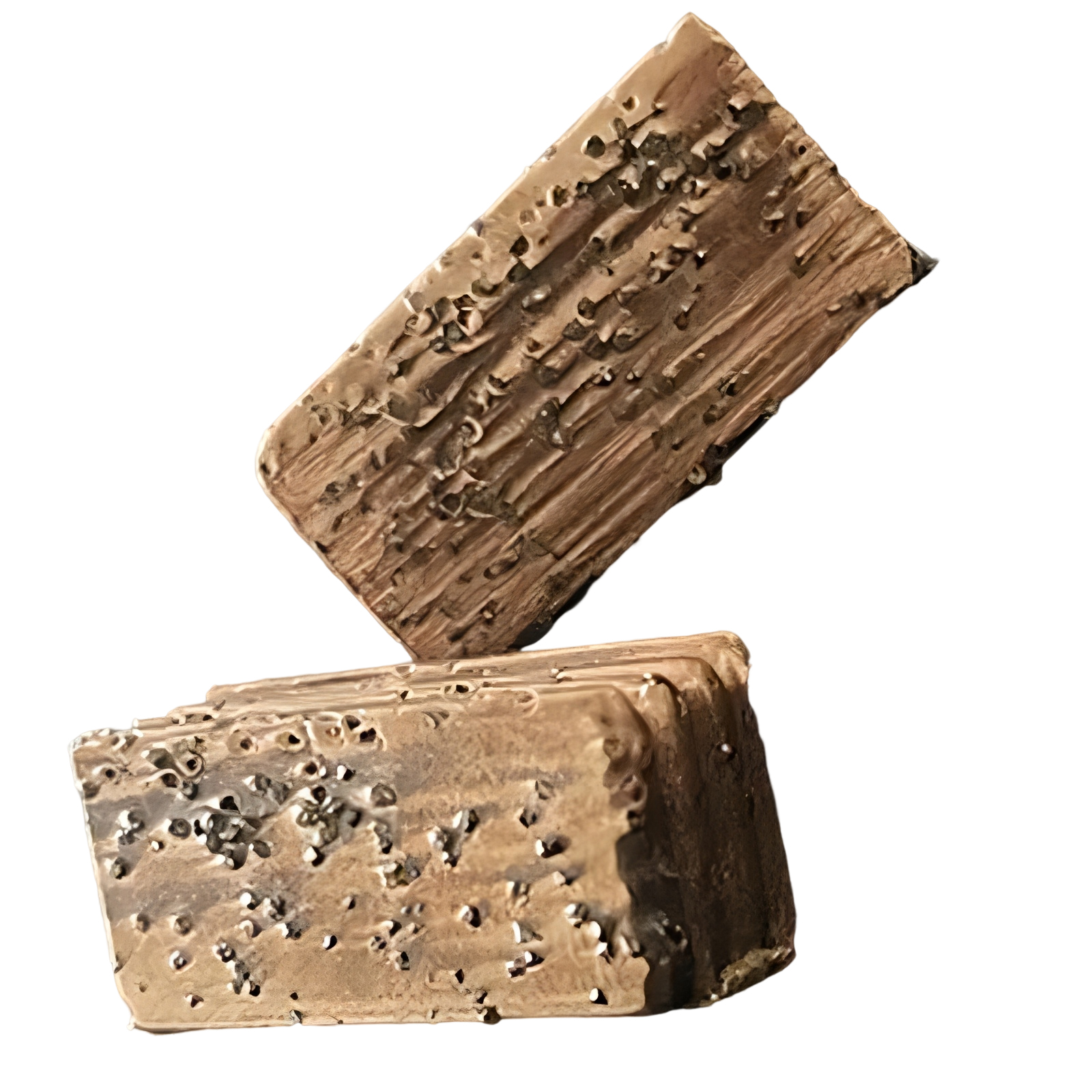

Diamond cutting head is a unique process formula with alloy powder as the bonding material, equipped with A-grade diamond particles. The alloy powder is mixed with diamond, loaded into a mold and pressed into a certain density block, which is then sintered at high temperature. The blade is welded to the serrations through laser or high-frequency welding, forming a sharp marble cutting saw blade. Product features
A row saw is a combination of multiple saw blades, which can process multiple stone slabs in a single operation. Compared to a circular saw blade, the row saw has a higher efficiency in processing slabs. The saw blade is thin, so the loss of stone cutting is low. Sharpness is the biggest characteristic of this blade! The efficiency of marble cutting is high, and the sharpness of marble cutting is unparalleled in China, leading the world! The blade has a hard and wear-resistant texture, and a single pair of blades can cut 40000~6000 square meters. Differences from similar products in the market
The company has been focusing on the research and production of marble cutting heads for 20 years, with rich technological accumulation and stable product quality. The sharpness of the blade is the biggest advantage of this product. Within the same time, the area of marble cutting is 2-3 times that of other products on the market, and the cutting efficiency is high. When converted into equipment electricity and labor costs, the comprehensive processing cost for users will be 1/2 to 1/3 of that of other products in the same industry. Application scope
Used for marble square cutting, marble board cutting and processing.
